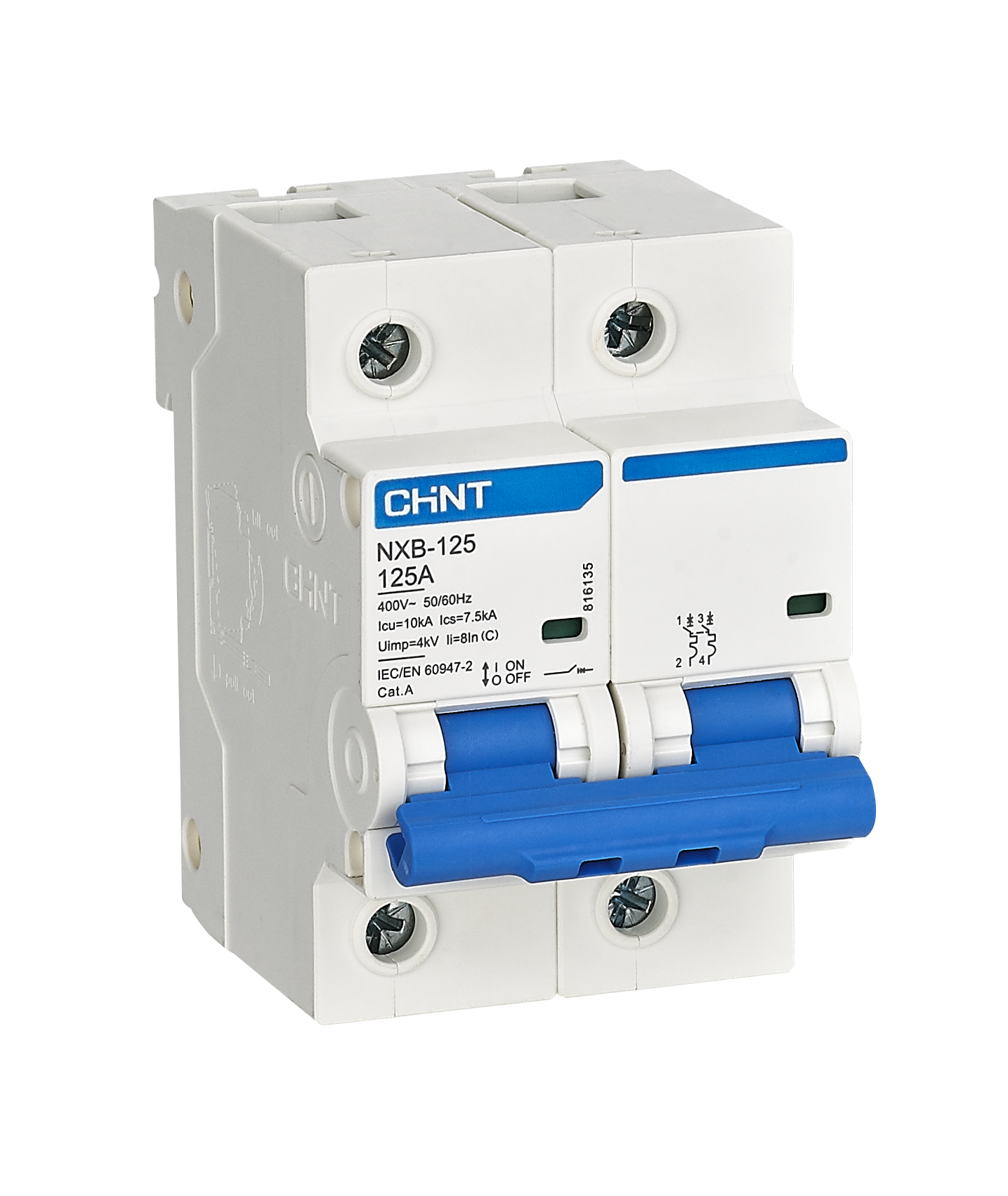

NXB-125 Moulded Case Circuit Breaker

SKU:NXB-125

NXB-125 provides overload protection, short-circuit protection and positive isolation in accordance with IEC/EN 60947-2.

  • Rated current: 63A, 70A, 80A, 90A, 100A and 125A
  • Number of poles: 1P, 2P, 3P and 4P
  • AC rated voltage: 230V (1P), 400V (2P, 3P and 4P), 50/60Hz
  • Thermal-magnetic release: C (8In) and D (12In)
  • AC breaking capacity: Icu 10kA; Ics 7.5kA
  • Rated impulse withstand voltage: 4kV
  • DC ratings depend on voltage and pole configuration; refer to the catalogue.
